Location: Muskego, WI
Employees: 20
Precision Screw Thread is a contract manufacturer that specializes in precision grinding and roll threading. Our core competency in our power transmission/linear motion business is producing actuator screws, lead screws, worm shafts, and ball screws.
1
MANUFACTURING CAPABILITIES
Precision Screw Thread Corporation specializes in thread rolling solutions and services. Precision Screw Thread provides close tolerance thread rolling from .059 inches to 8.0 inches diameter and cut to customer’s required length.
Precision Screw Thread Corporation also does precision CNC thread grinding and secondary operations. Our capabilities include:
- Centerless grinding up to 13″ diameter
- Inside and Outside Diameter grinding up to 14″ diameter
- Thread rolling up to 6-1/4″ diameter on long bars and up to 12″ diameter for shorter applications
- Thread grinding up to 12″ diameter and 42″ length
1
EQUIPMENT
- 6 Thread rollers
- 2 Centerless grinders
- 1 CNC grinder
- 1 Cylindrical grinder
- 3 Machining centers
- 3 CNC lathes
- 4 Manual lathes
- 8 Misc. machining support stations
We have two 5 ton overhead cranes to handle any oversize project. Our die room has nearly 1500 die sets for a full range of rolled thread projects. These on-hand die sets greatly reduce the likelihood of the need to purchase die sets or wait for them to be manufactured.
1

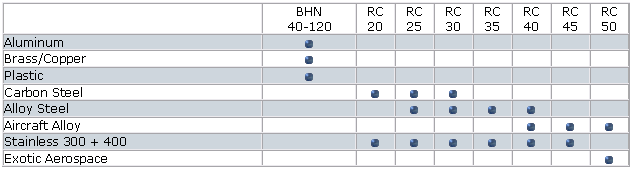

COMMON MATERIALS
Most wrought materials used in manufactured parts can be thread rolled. Steel, stainless steel, brass, aluminum, high nickel content materials and exotic metals can be thread rolled. Hardness as high as Rockwell C50 have been successfully rolled on our equipment. The best properties for thread rolling are indicated by a fairly wide spread between the ultimate strength and the yield strength of the material.
1
QUALITY CONTROL
As a qualified vendor for large aviation/aerospace manufacturers and other prime government contractors, we have threading experience few can match. Our entire organization operates under MIL-45208 and can meet your particular needs on dozens of other MIL specs. Precision Screw Thread Corporation is dedicated to continuous improvement toward producing defect free screw thread products for our customers. We accept the task of forming partnerships between customers, suppliers and employees to develop and maintain a quality environment in which each participant can contribute and all can benefit and grow.
1
MARKETS SERVED
- Commercial
- Aerospace
- Aircraft
- Military
Precision Screw Thread Sample Parts Gallery
